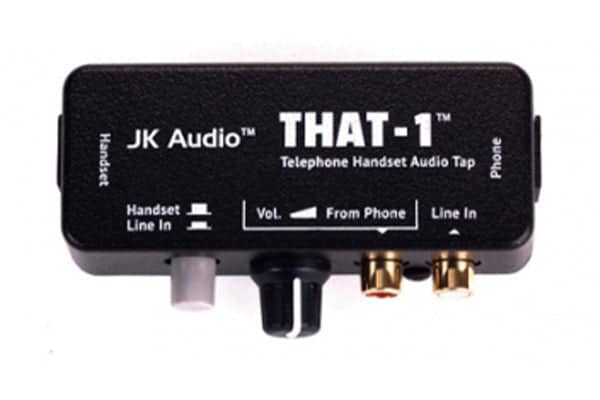

JK Audio THAT1 Telephone Handset Audio Tap

JK Audio That1 Telephone couplers & Hybrids connect between your telephone and handset for quick access to audio in and out of the telephone. The JK Audio THAT1 telephone coupler is used by radio stations to record and play sound bytes, and by computer and telephone companies to demonstrate their computer voice services using a powered speaker.

Simply unplug the handset coily cord form the base of your telephone and plug it directly into the JK Audio THAT1. Then, using the supplied cable, connect the JK Audio THAT1 coupler back to the telephone. Now connect your audio equipment or powered speaker using the RCA jacks. The grey pushbutton selects which audio will be sent into the telephone (OUT = talking on the handset, IN = sending audio in through the RCA jack). The output RCA jack contains a nice mix of the audio from both sides of the conversation, as well as the tones being pressed on the keypad. The volume control adjusts the volume of the signal going to your powered speaker or tape recorder.

The JK Audio THAT1 will work with many different types of analog and digital PBX and ISDN telephones. The receive side of the THAT1 (audio From Phone), will work on any telephone. To send audio into the telephone (To Phone), the telephone must have an electret type microphone in the handset. If your telephone has a round mouthpiece or if you intend to use these product on many telephones, you should consider our model THAT2, which is compatible with more telephone systems.

The THAT1 does not work with cellular telephones or any telephone with a keypad in the handset.

THAT1 Instruction Manual
